Material & Construction

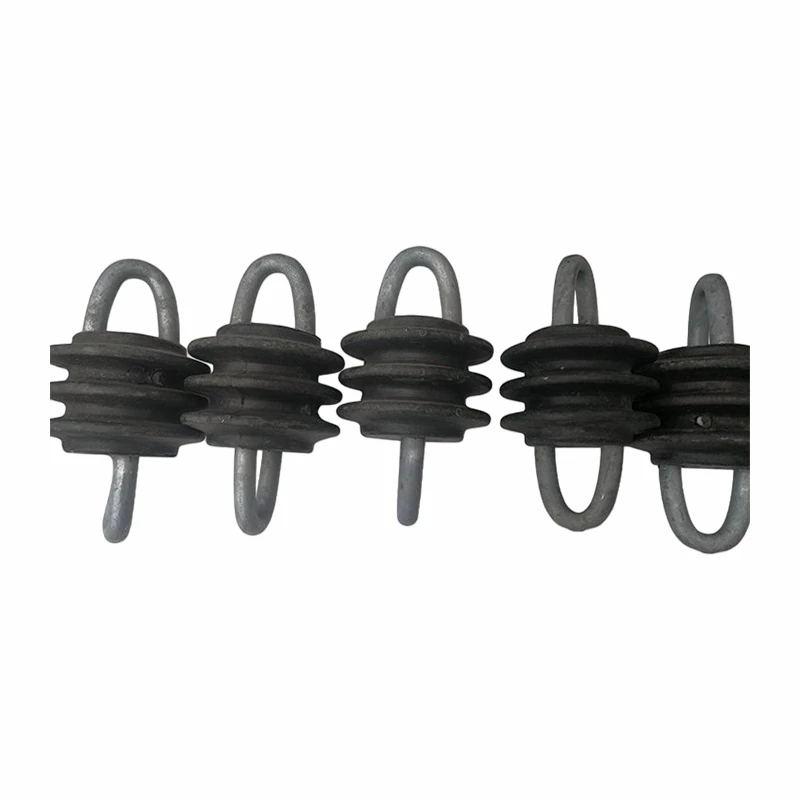

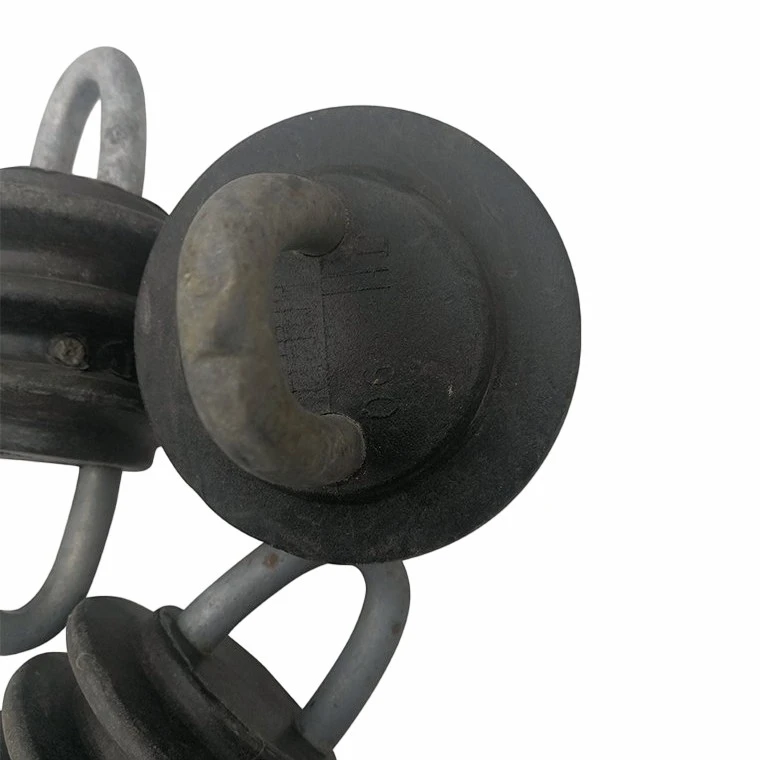

The insulator features a core rod made of fibreglass‑reinforced epoxy resin, covered with silicone rubber sheds. This construction offers high mechanical strength, excellent insulation, and strong anti‑pollution flashover performance. Models JH10‑90 and JH10‑120 offer rated mechanical loads of 90kN and 120kN respectively. Colours can be red, brown, grey, or customised. Production complies with IEC, GB, BS, ANSI, and AS standards.
Quality Assurance
The critical interface between the core rod and silicone rubber is sealed using dedicated vulcanisation equipment to ensure long‑term reliability. Each piece undergoes power‑frequency withstand voltage testing and mechanical tensile testing before shipment, verifying both electrical and mechanical properties. Our factory is a national high‑tech enterprise with full quality certification.
Customization & Ordering
We offer custom colours and end‑fitting options. Standard models are stocked for 7‑day delivery; custom orders take about 2 weeks. MOQ is normally 8,000 pieces but negotiable for trial projects. We can mix different colours in one order.
Packing & After Sales
Export packaging uses moisture‑proof film and cartons. We support EXW, FOB, DDP, and multiple currencies. A one‑year global warranty applies, with 24‑hour response to quality feedback.
Product Specifications
|
Parameter |
Details |
|
Product Name |
JH10 Composite Tension Insulator |
|
Category |
Guy Hardware |
|
Material |
Fibreglass epoxy rod, silicone rubber sheds |
|
Models |
JH10‑90 (90kN), JH10‑120 (120kN) |
|
Rated Voltage |
10kV |
|
Overall Height |
205±9.7mm |
|
Standards |
IEC, GB, BS, ANSI, AS |
|
Lead Time |
Stock: 7 days; Custom: ~2 weeks |
|
Warranty |
1‑year global warranty |
