Material & Construction

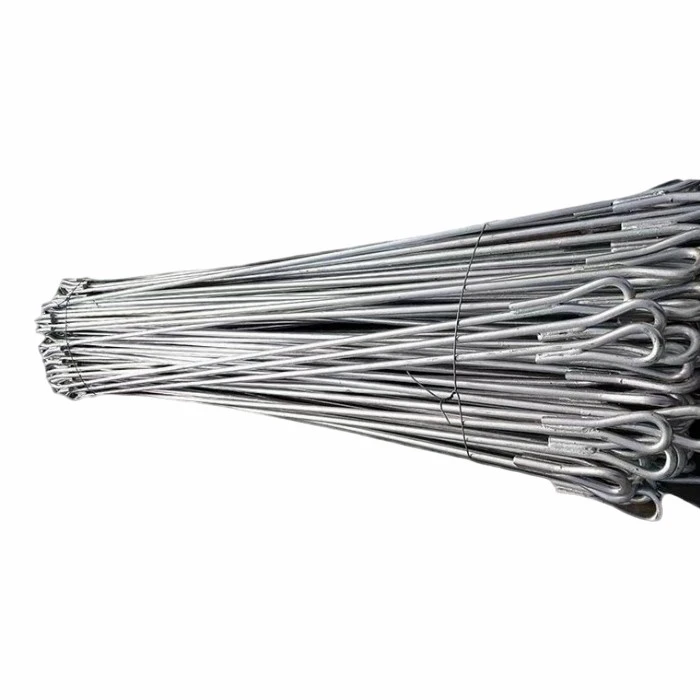

Made from high‑quality steel and fully hot‑dip galvanized, the stay rod offers excellent corrosion resistance for long outdoor life. One end connects to the guy wire, the other to the anchor. Standard sizes include 16×1500mm, 16×2000mm, 16×2500mm, 18×2000mm, 18×2500mm, 20×2500mm, and others. All products comply with national standards.
Quality Control
The rod's straightness and the perpendicularity of the end connection holes are critical for field installation. We use dedicated straightening equipment and positioning drilling fixtures to achieve precise dimensions. Each batch undergoes tensile testing to verify breaking load. The entire rod is hot‑dip galvanized by whole‑immersion to ensure full coating coverage inside and out. Our factory holds ISO and high‑tech enterprise certifications.
Customization & Availability
Lengths can be customised to your engineering requirements. Standard lengths are stocked for 7‑day delivery. Custom orders take about 2 weeks. We accept mixed lengths in one order.
Packing & Shipping
Long rods are bundled with anti‑rust film, and ends are protected with caps to prevent thread damage. We support EXW, FOB, DDP, and multiple currencies. A one‑year global warranty is provided, with 24‑hour after‑sales response.
Product Specifications
|
Parameter |
Details |
|
Product Name |
Stay Rod for Power Line |
|
Category |
Guy Hardware |
|
Material |
High‑quality steel, hot‑dip galvanized |
|
Common Sizes |
16×1500mm, 16×2000mm, 16×2500mm, 18×2000mm, 18×2500mm, 20×2500mm |
|
Application |
Connecting guy wire to ground anchor; anti‑overturning for poles/towers |
|
Customization |
OEM/ODM (diameter, length, end fittings) |
|
Lead Time |
Stock: 7 days; Custom: ~2 weeks |
|
Warranty |
1‑year global warranty |
