Material & Construction
The clamp body and wedge are made of malleable cast iron, hot‑dip galvanized, with stainless steel split pins. The long U‑bolt enables fine length adjustment, simplifying installation and future re‑tensioning. Models NUT‑1 through NUT‑4 cover strand diameters from 6.6mm to 16.0mm, with rated breaking loads from 45kN to 164kN. All products meet national standards.
Quality Control
The threaded portion and adjustment shank are precisely machined to ensure smooth turning without binding. The wedge and socket contact surfaces are finished to guarantee reliable self‑locking. Each unit is tested for sliding fit before packing. Our factory holds ISO certifications and performs routine pull‑out tests on every batch.
Customization & Ordering
We support OEM modifications to U‑bolt length or thread size. Standard models are in stock for quick dispatch. Custom orders take about 2 weeks. We accept mixed models in one order. With monthly output over 800,000 pieces, we can handle large contracts efficiently.
Packaging & Logistics
Export packing uses anti‑rust film and cartons. We offer flexible trade terms and multi‑currency payment. All products carry a one‑year global warranty, with 24‑hour after‑sales support.
Product Specifications
|
Parameter |
Details |
|
Product Name |

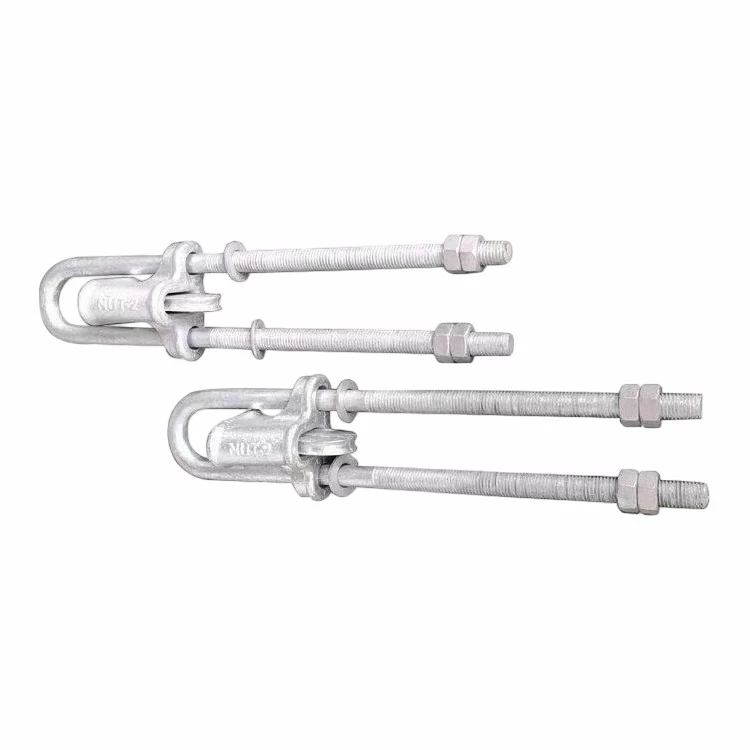

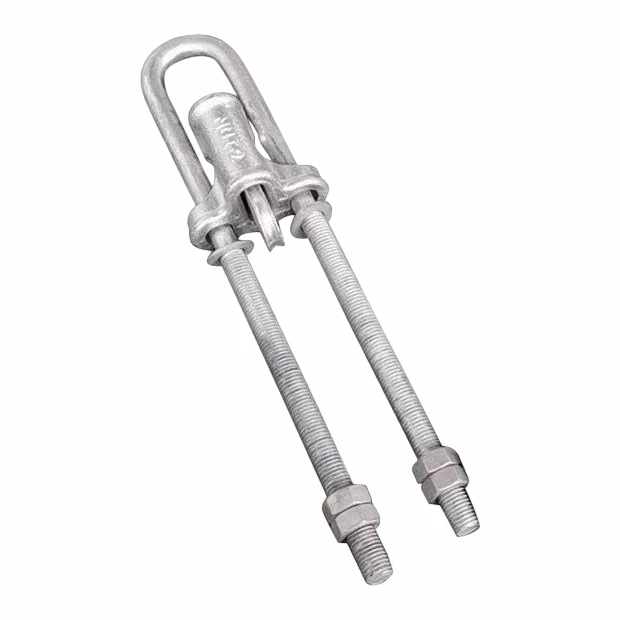

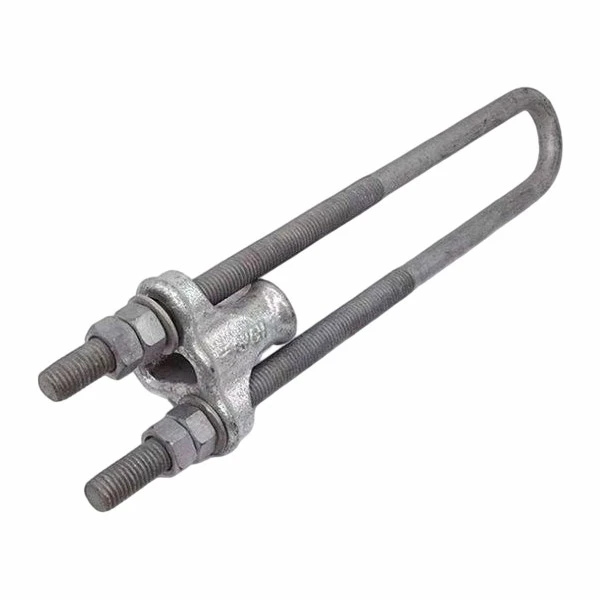

NUT Type Adjustable Guy Clamp |
|
Category |
Guy Hardware |
|
Material |
Malleable cast iron, hot‑dip galvanized; stainless steel split pins |
|
Models |
NUT‑1, NUT‑2, NUT‑3, NUT‑4 |
|
Strand Diameter Range |
NUT‑1: 6.6‑7.8mm; NUT‑2: 9.0‑11.0mm; NUT‑3: 13.0‑14.0mm; NUT‑4: 15.0‑16.0mm |
|
Rated Load |
45kN to 164kN |
|
Lead Time |
Stock: 7 days; Custom: ~2 weeks |
|
Warranty |
1‑year global warranty |
