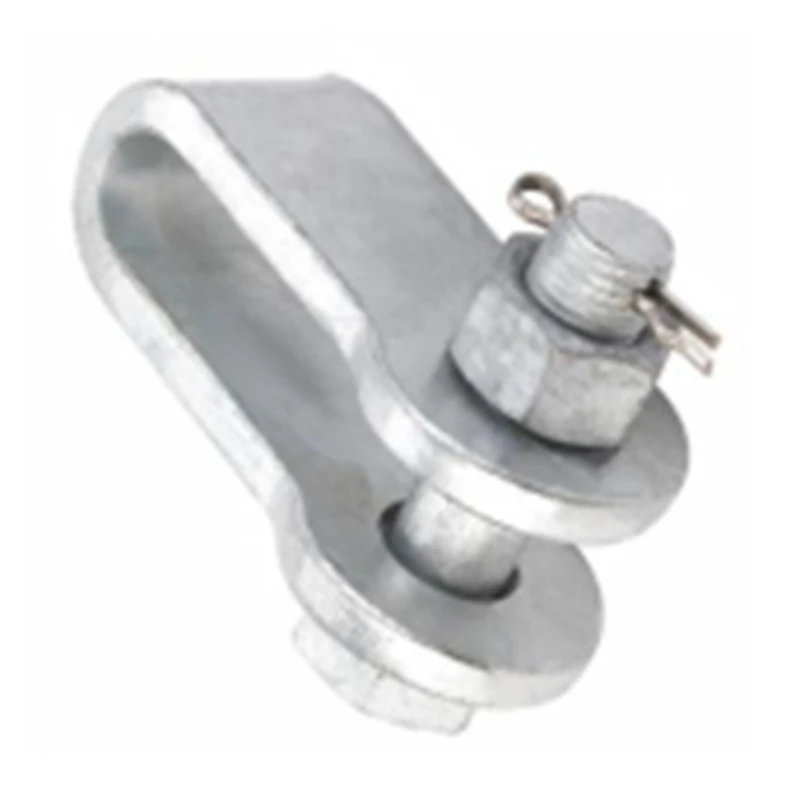

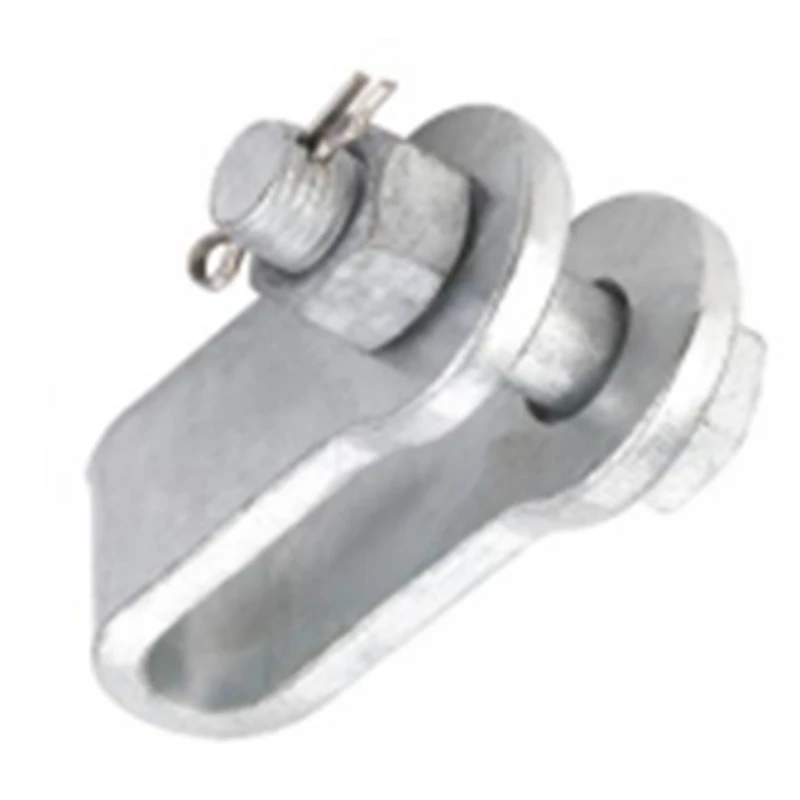

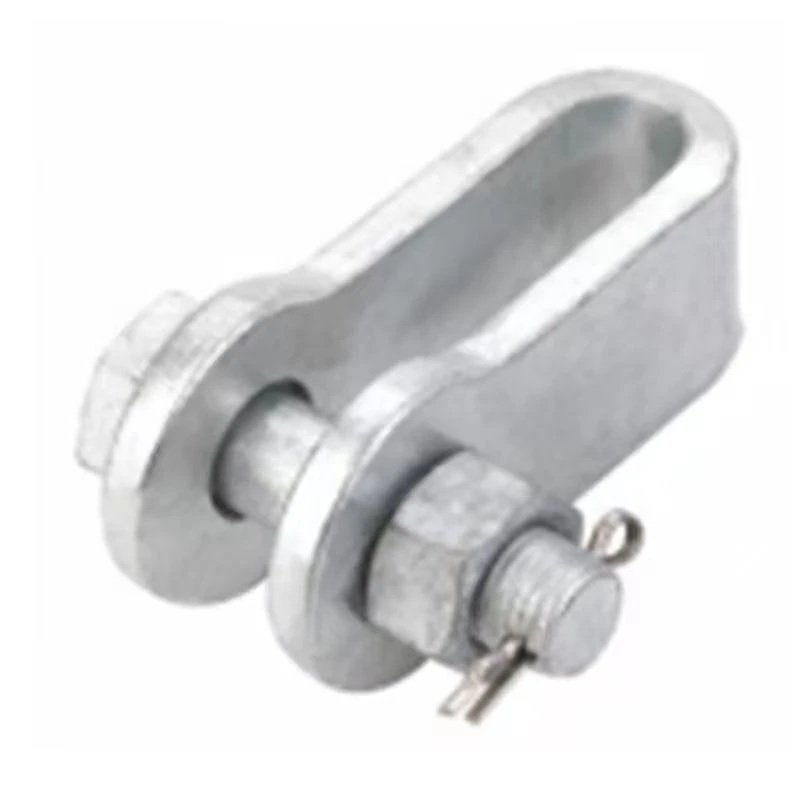

UBX Type Clevis

The UBX Type Clevis is forged from Q235 steel, ensuring high strength and resistance to impact. The entire unit is hot‑dip galvanized for superior corrosion protection. The two pivot axes are arranged at a precise right angle, with their perpendicularity carefully controlled during machining. Stainless steel split pins are used for all locking points, providing excellent anti‑loosening performance. The forging process delivers a dense, defect‑free structure, especially at the critical pivot junctions.

Each pivot axis is inspected with dedicated gauges to confirm the 90° angle accuracy, ensuring smooth bidirectional rotation. The clevis is also tested for pivot flexibility and pin retention. Our factory follows strict quality procedures, backed by ISO certifications and our status as a national high‑tech enterprise. All units undergo dimensional checks and surface inspection before packing. We also perform random pull‑out tests on the split pins to guarantee secure fastening.

We offer OEM services to adjust hole sizes, arm lengths, or pivot angles if required. For standard UBX models, we maintain ready stock. For customised versions, the lead time is about 2 weeks after sample approval. We can combine different sizes in one order, and the MOQ is flexible for trial projects. With a monthly output of over 800,000 pieces, we can confidently support large‑scale procurement.

Export packing uses anti‑rust film and cartons, with special foam supports to lock the pivots in place and prevent rotation during shipping. We support EXW, FOB, and DDP incoterms, and accept multiple currencies. A one‑year global warranty is provided, with 24‑hour response to any quality feedback.
