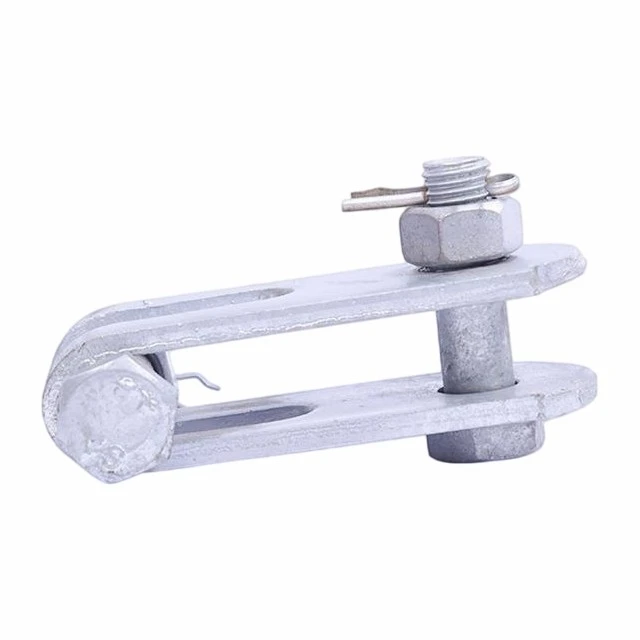

Z Type Clevis Plate

The product is manufactured from high-quality steel with a complete hot-dip galvanized surface treatment. The galvanized coating is uniform and dense, providing excellent corrosion resistance for long-term outdoor service. The stainless steel split pin offers corrosion resistance and anti-loosening performance for reliable long-term connections. The Z-shaped structure is designed to connect suspension and strain insulator strings to tower cross-arms, achieving a 90-degree turn to meet various line connection requirements. Production strictly follows national electric power industry standards, with full-process control from raw material receipt to finished product dispatch.

The Z-shaped bend is the core manufacturing challenge for this product. Hebei Tongchuang Power Fittings Co., Ltd. uses dedicated bending dies and positioning fixtures to ensure accurate bend angles and coplanarity of the two parallel faces. The stainless steel split pin and body pin hole fit is optimized to ensure smooth insertion while preventing loosening during operation. Inspection uses specialized gauges for individual verification of perpendicularity between the two connection holes. The company is a nationally recognized high-tech enterprise with over ten patent authorizations. Every product undergoes visual inspection and full dimensional verification before shipment.

When ordering the Z Type Clevis Plate, customers should specify connection hole diameter and installation orientation requirements. The technical team can review engineering drawings to verify the Z-structure's geometric parameters. OEM customization is supported for adjustment of connection hole position and center distance. Export packaging uses corner cushioning sleeves at the Z-shaped bend to prevent deformation from stacking pressure. One-year global warranty and 24-hour after-sales response.
