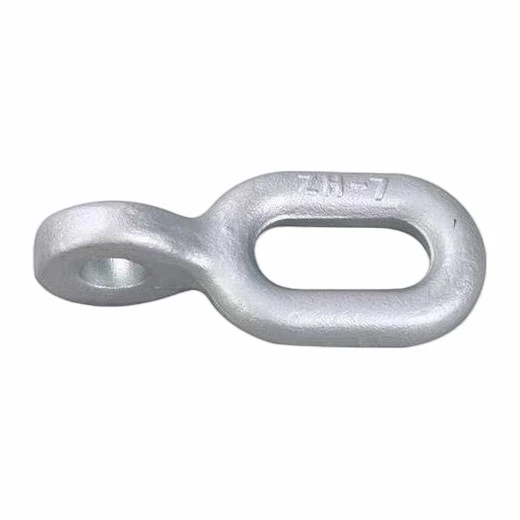

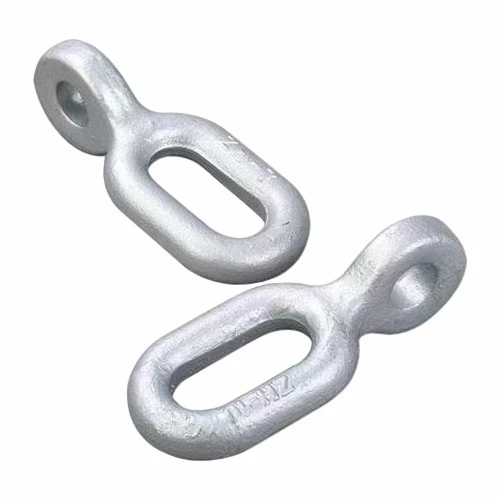

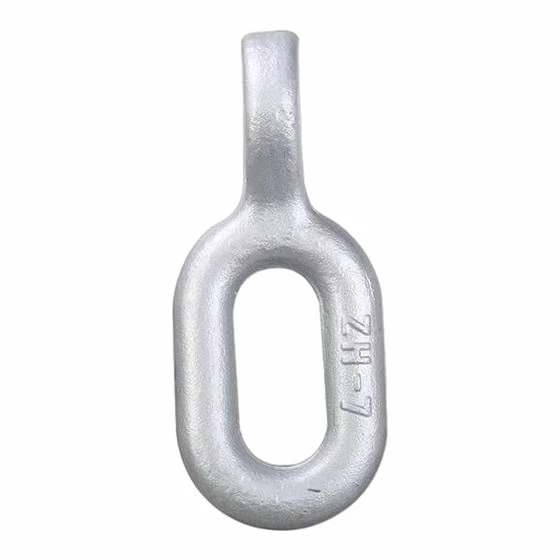

Right Angle Shackle

The Right Angle Shackle is a specialized connecting fitting for transmission and distribution lines that changes the load-bearing direction of connections. Its core function is to achieve a 90-degree turn in the connection load path. It is commonly used for transitions between insulator strings and tower attachment points, or between suspension clamps, strain clamps, and insulator strings. This product solves the problem of mismatched connection directions among different fittings and is an essential component for ensuring proper insulator string suspension and smooth conductor routing.

Send Inquiry

Materials and Manufacturing

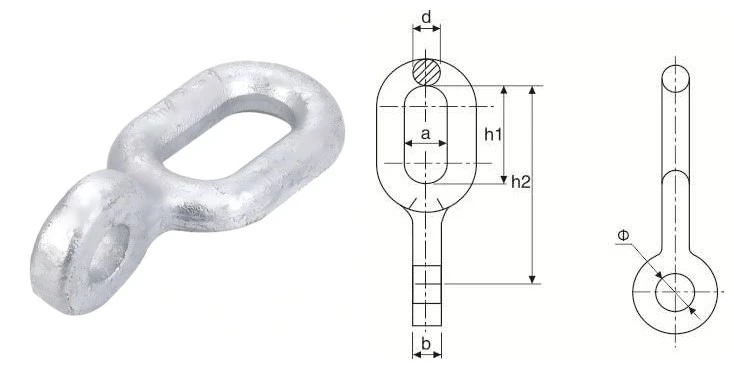

The Right Angle Shackle is manufactured through integral forging without welds or joints, providing high structural strength and reliable load-bearing capacity. The product features a right-angle bent structure with connection holes at both ends for attachment to tower points and insulator strings respectively. The hot-dip galvanized finish provides uniform coating and excellent corrosion resistance for long-term outdoor service. Production strictly follows national electric power industry standards.

Manufacturing Process

The key manufacturing challenge for the Right Angle Shackle is metal flow control at the right-angle bend. Hebei Tongchuang Power Fittings Co., Ltd. optimizes mold design and forging processes to prevent folds or cracks at the 90-degree bend. Inspection uses coordinate measuring machines to verify perpendicularity between the two connection holes, center distance, and hole position deviations, ensuring precise alignment with mating hardware. The company has achieved quality and environmental management system certifications and is a nationally recognized high-tech enterprise.

Procurement and Support

When ordering the Right Angle Shackle, customers need to provide hole spacing and hole diameter of the mating hardware for dimensional verification. OEM customization is supported for adjustment of connection hole size and center distance. Export packaging uses cushioning material at the right-angle bend to prevent deformation during transport. One-year global warranty and 24-hour after-sales response.

Product Specifications

Specification	Detail
Product Name	Right Angle Shackle
Product Category	Link Fitting
Material	Integral forged, hot-dip galvanized
Structural Feature	90-degree angle turn, connection holes at both ends
Application	Insulator string to tower attachment, changing load direction
Customization	OEM and ODM support
MOQ	8,000 pieces for standard models (negotiable for projects)
Delivery	7 working days for stock, ~2 weeks for custom
Warranty	One year global warranty
